TechTAC's New Anchor Aims to Double Oil Output in Gassy Wells

VERNAL, UT – February 23, 2026 – By Stephanie Lewis

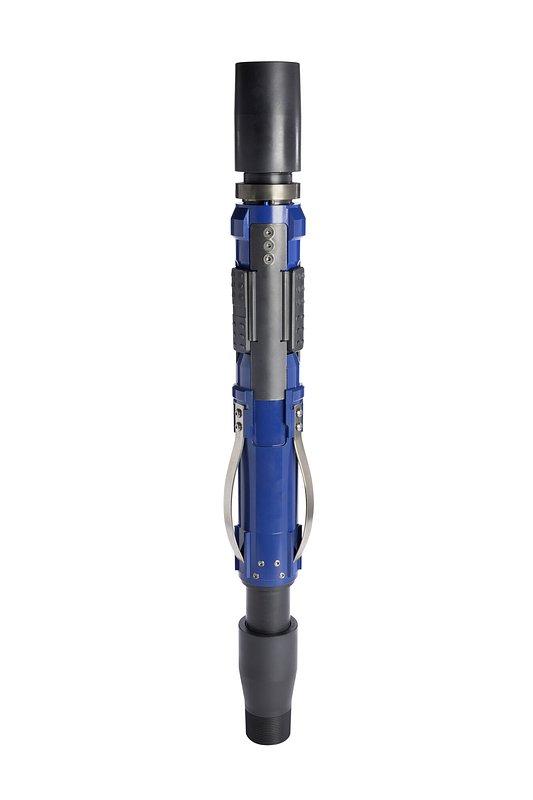

TechTAC, a specialized provider of oilfield equipment, has launched a new patent-pending downhole tool designed to address one of the most persistent and costly challenges in oil production: gas interference. The company's Slimline® Full Bore Tubing Anchor Catcher (TAC) is engineered for a specific but common well configuration, and early results from the field suggest it could significantly boost output and operational efficiency, with one operator reporting production increases of up to 100 percent.

The new anchor targets 5.5-inch wells that utilize 2-7/8-inch tubing, a frequent setup in many oil-producing regions. Its introduction comes as operators increasingly focus on maximizing output from existing assets and mature wells, where managing gas-to-oil ratios is critical for profitability.

A Bottom-Line Boost in the DJ Basin

The most compelling evidence for the new tool's potential comes from an independent exploration and production company operating in Colorado's DJ Basin. The region, known for its rising gas-to-oil ratios, provided a challenging real-world test for the technology. According to a production superintendent from the company, the results were immediate and substantial.

"We have had good luck with the Slimline Full Bore TACs so far. They work well for gas interference issues in our wells," the superintendent stated in a release. He noted a 25 to 30 percent increase in the volume of gas being discharged at the surface, a clear indicator of improved gas separation downhole. The impact on oil production was even more dramatic: "All three wells went from producing roughly 40 barrels per day to approximately 80 barrels per day – a 100 percent increase."

While TechTAC acknowledges that results will vary based on individual well conditions, such a significant return on investment from a single component change is turning heads. For E&P companies, the financial implications extend beyond just increased barrels of oil. By stabilizing the production tubing and mitigating gas locking, the anchor can reduce wear and tear on the entire rod pump system. This leads to fewer equipment failures and a reduction in the frequency of costly workovers, which involve pulling the entire production string from the well.

One production engineer familiar with the technology reported that a problematic well, which previously required a workover every 30 days on average, ran for 140 consecutive days without downtime after installing the new anchor. This five-fold increase in operational uptime represents a significant reduction in lifting costs and a major boost to the economic viability of mature wells.

An Elegant Engineering Solution

The Slimline Full Bore TAC's success lies in its unique design, which solves a long-standing engineering compromise. For years, operators in 5.5-inch wells using large pumps with 2-7/8-inch tubing faced a dilemma. A standard, bulky "B2" anchor restricted the flow of gas and fluids around the outside of the tool, leading to pressure drops, turbulence, and gas locking that choked production.

TechTAC's original Slimline anchor improved on this by offering up to 245 percent more flow-by area, but its smaller internal diameter (ID) created a new problem: it couldn't be placed above the seat nipple if a large pump needed to pass through it. This forced engineers to place the anchor lower in the well, limiting design flexibility.

The new Slimline Full Bore TAC, the result of a two-year development process, resolves this issue by combining the best of both worlds: a slim outside diameter (OD) similar to the original Slimline, and a full 2.4-inch internal bore. This combination allows the anchor to be placed above the seat nipple, providing engineers with newfound flexibility in designing the downhole tool string for maximum efficiency, even with large pumps.

Computational Fluid Dynamics (CFD) studies commissioned by the company show that the slim design creates significantly less pressure drop and turbulence compared to standard anchors. High turbulence is a primary contributor to gas breaking out of solution prematurely, leading to inefficient pump cycles and the formation of scale, paraffin, and iron sulfide, which can further restrict flow and require expensive chemical treatments or mechanical cleanouts.

Market Innovation and Competitive Edge

TechTAC's launch of a highly specialized tool underscores a key trend in the modern oilfield services (OFSE) sector, which is projected for steady growth as the industry demands more technologically advanced solutions. Rather than one-size-fits-all equipment, operators are seeking tailored innovations that solve specific, high-cost problems.

The company has filed for protection of its new design, labeling the product "patent-pending." This designation serves as a clear signal to the market that TechTAC considers the technology a core part of its intellectual property. While not yet an enforceable patent, the status warns competitors against mimicry and reinforces the product's innovative standing. This strategy is familiar for the company, which already holds a patent for its Slimline QuickSet TAC, demonstrating a commitment to defending its engineering investments.

The competitive landscape for tubing anchors includes a range of products, from the ubiquitous standard B2 anchors to various large-bore and quick-setting models from other manufacturers. TechTAC is differentiating its new product by focusing on the specific, high-value problem of optimizing flow and pump placement in one of the industry's most common well configurations.

By providing a tool that not only anchors the tubing but also actively improves fluid dynamics and gas separation, the company is positioning the Slimline Full Bore TAC as more than just a piece of hardware. For engineers and field managers, it represents a new strategic option for enhancing production, extending the life of mature wells, and ultimately improving the bottom line in an increasingly competitive energy market.
